DRONE DETECTION, ASSESSMENT, TAKEDOWN, AND OTHER COUNTER-DRONE MEASURES.
Drone defense, detection and protection
HELIGUY.com™ is a leading global drone defense supplier.
Counter-Drone ContentWhat is Drone Defense? How Heliguy Help with Drone Defense Strategy DJI AeroScope Drone Detection Why Choose Heliguy for Drone Defense? Drone Defense Case Studies Layered Drone Defense Solutions for Complete Protection Types of Drone Defenses Masts for DJI AeroScope Fixed Installations
what does drone defense mean?
Simply put - you're protecting your airspace against drones that may enter it without your permission.
Why do you need drone defense?
Drone defense has become an important asset for critical infrastructure, airports, prisons, and stadia, as well as for organizers of major events
There’s no doubt that drones are great machines; providing hobbyists with hours of fun and helping commercial pilots save time, enhance safety, capture fast and accurate data, and increase efficiency and return on investment.
However, if put into the wrong hands, UAS (unmanned aircraft system) can be used for illegal or illicit means, whether that be as a smuggling device, a tool for terrorists or to simply cause a nuisance.
The FAA (Federal Aviation Administration) says that reports of UAS sightings from pilots, citizens, and law enforcement have increased dramatically over the last two years, with the FAA now receiving more than 100 such reports each month.
This, and the fact that drone ownership is increasing in the US - with 1,678,500 drones currently registered - has prompted the FAA to issue a clear message that operating drones around airplanes, helicopters, and airports is dangerous and illegal, and unauthorized operators may be subject to fines and criminal charges, including possible jail time.
This spike - with reports of misused UAS exceeding 2,000 annually during 2017, 2018, and 2019 - shows why installing drone security systems and having a drone defense strategy is essential.
How can Heliguy Assist with my Drone Defense Strategy?
We are a global drone defense expert - taking you through all the solutions to make sure your drone defenses are effective.
Drone security system specialist HELIGUY.com™ has become one of the world's most respected DJI AeroScope Counter-UAS suppliers and installers and we are a trusted and award-winning DJI Partner.
We have installed drone defense and drone detection systems into some of the largest airports, including London Gatwick, and provided a DJI AeroScope system for major sporting events.
HELIGUY.com™ has expanded its offerings to the C-UAS market by partnering with a number of key names in the industry, including Altitude Angel, to offer a comprehensive layered solution, allowing you to combat rogue drones in multiple ways.
HELIGUY.com™ has been at the forefront of industry discussions about drone detection and drone defense and has been key in demonstrations to protect airspace.
Given our years in the UAS industry, experience in the C-UAS market and with our Cyber Security, ISO 9001 and CPD accreditations, HELIGUY.com™ is perfectly placed to provide consultancy, training and hardware to ensure your asset is protected.
Major Clientbase Including Major Airports
Integration with Other Solutions
Secure servers/API access/Free SDK
Equipment Demos and Trials prior to Purchase
Global provider of Drone Defense
What is DJI AeroScope?
DJI AeroScope is a purpose-built drone detection system, allowing an operator to quickly and easily track real-time telemetry data from DJI aircraft.
This allows the operator to protect their airspace and make an informed decision amid a drone threat.
DJI AeroScope comes in mobile and stationary formats. This powerful system can identify drones within a 50km range.
DJI AEROSCOPE - DJI's Drone Detection Solution
An Essential Tool For Drone Defense.
Why Choose The AeroScope Drone Security System?
Heliguy Detect is built around DJI AeroScope.
Since the beginning of 2019, Heliguy-supplied AeroScope systems have picked up more than 25,600 drone flights - with some of these operations exceeding the legal restrictions. Having this data gives users a clear picture of how drones are operating within their airspace and gives them the chance to act quickly and decisively to combat a potential threat.
DJI drones are world-leading because they are easy-to-use out-of-the-box solutions which provide reliable results. DJI AeroScope is no different.
The system is a quickly-deployable solution which captures data rapidly and in a digestible format.
How Does DJI AeroScope Work?
Detect Drones Remotely
DJI AeroScope – which acts as an electronic license plate – is a passive advanced-warning system which can remotely identify airborne drones. By using AeroScope, law enforcement, aviation and other authorized agencies can manage their airspace, keep track of a drone's whereabouts and take action against a rogue UAS threat.
AeroScope's underlying technology and advantage is that it uses the existing communications link between the drone and its remote controller to quickly collect information about the drone, such as:
- Drone Serial Number
- Make and Model
- Precise Drone Location
- Drone Speed
- Drone Direction
- Home Position
- Pilot Position (if pilot is using a GPS enabled device)
Authorized users such as airports and police departments can see this information displayed on a computer map for every drone within the multi-mile range of AeroScope’s antennae.
This telemetry information is broadcast directly from the drone to the AeroScope receiver, allowing authorities to identify and track those drones, and take action if any of them raise concerns.
AeroScope is a Remote ID system which detects DJI’s five radio types. These are:
- Lightbridge 2
Thanks to the rich information that is collected by AeroScope, if legal proceedings were to commence after an illegal flight, AeroScope can generate a detailed log of every flight detected by the system, which can be exported and saved to be part of the investigative file and report.
National aviation regulators understand that Remote ID will be a key component of future Unmanned Traffic Management (UTM) systems, which will simultaneously track drones and traditional aircraft in crowded airspace. AeroScope’s easy and accessible Remote ID information can be integrated into a UTM system, providing airspace managers with a full picture of drone and traditional aircraft movements in the skies.
AeroScope comes in a number of different forms - either portable or the permanent G8 or G16 systems.
DJI AeroScope Configuration Options
The portable unit can detect drones within a 5km radius.
It is ideal for short-term, temporary deployment.
The easy-to-deploy system is self-contained in an IP-54 rated hard case, operating Android OS on a CrystalSky controller.
The portable unit operates on either mains power, or intelligent, hot-swappable batteries.
External antennas can be optionally deployed.
The portability and convenience of the mobile unit makes it ideal for tactical situations where stationary units are unavailable.
The G8 system can detect drones within a 30km radius.
It offers the widest variety of deployment options.
The G8 incorporates a four-panel array of high gain directional antennas to increase the effective range of the system for greater detection capability.
The system includes a weather-resistant radio system that can endure harsh conditions.
The system is equally applicable for both permanent installations and temporary ones.
It can be installed on buildings, towers, or mounted on mobile command posts.
AeroScope G16 Fixed Installation
The G16 system can detect drones within a 50km radius.
It offers the most expansive coverage thanks to its large antenna array and multiple radio units.
AeroScope's G16 configuration incorporates separate 2.4 and 5.8 GHz antenna elements. For 360-degree coverage, the G16 includes a 32 element antenna array and four radio units.
The G16 is suited to be installed on a building or tower for long-term use.
This system is ideal for permanent installations for clients seeking extended coverage areas and early warning, including airports, sea ports, military and nuclear facilities, prisons, and stadiums.
Real-time Drone Monitoring
DJI AeroScope allows you to view a summary of a drone flight in real-time, showing the flight position of the aircraft, its height, speed, and pilot location.
This gives you precise, actionable data, which can be used to make an informed decision about protecting your airspace.
The Statistical Report page shows an overview and an analysis of the detection data. This provides information about the number of flights detected, flight altitudes and detection distance.
Users can also delve into historical flights, searching by keywords such as flight number and device ID, and viewing flight-path records.

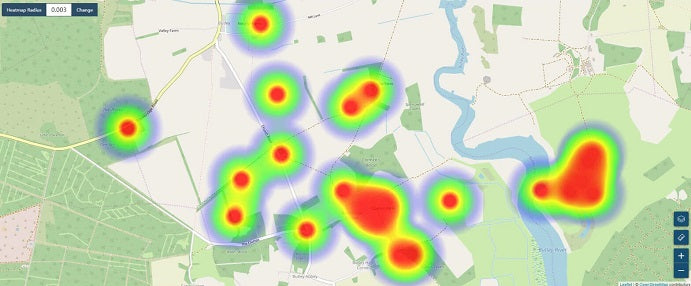

Heat Map Drone Flight Analysis
DJI AeroScope heat maps display the detection frequency and location distribution in the areas surrounding your asset or facility.
This lets you analyse the hot spot areas and take necessary action.
Advanced Drone Monitoring
Advanced Monitoring makes it easy for users to set up specific monitor rules, such as time and date ranges, customized monitoring areas, and choose warning alert methods.
You can also choose different options to monitor a drone's behaviour in your airspace. Want to know when a drone is too close for comfort?
Then select Monitoring Subject Appear in the Target Range, and a system warning will be triggered as soon as the monitored object appears in the planned monitor range.
Extendable masts for drone defense
Increase your observation capabilities.
Diverse Mounting Solutions
A mast can be a key piece of equipment in your drone defense strategy.
Drone detection technology, such as DJI's G8 and G16 AeroScope systems, can be mounted to a mast for a safe and secure solution.
HELIGUY.com™ has teamed up with Total Mast Solutions to offer extendable masts, which can stretch between 2m and 20m in height.
Being able to adjust the size of the pole provides a flexible option, to dynamically adjust the height of the drone defense system to meet the needs of the specific mission.
Mounting a DJI AeroScope G8 or G16 to a mast which can stretch to 20m in height allows you to extend the field of vision and coverage area, enabling you to protect as much airspace as possible.
As an added bonus, Total Mast Solutions' masts are both portable and easily and quickly deployed; essential for ad hoc missions and one-off events and incidents.
The masts - constructed from 2mm anodised aluminium, for a robust, but light solution - are available from HELIGUY.com™, for either purchase or rent.
Why Choose HELIGUY.com™ as your Drone Defense Partner
Utilize a range of drone security system benefits.
HELIGUY.com™ offers DJI AeroScope trials to large organizations. Our try before you buy offer gives users the chance to see the system’s capabilities, compare it to alternative solutions, and have real and actionable data in their hands to identify how AeroScope would help in a real-world scenario.
We also have access to API (currently in the BETA stage). This allows users to unleash the full power of drone detection, by integrating AeroScope with other systems and securing the AeroScope data on a private onsite or cloud server and really dig deep into the data.
Organizations can also take advantage of BETA access to SDK for free through Heliguy. This allows you to export AeroScope data to third-party situational awareness and common operating platforms.
HELIGUY.com™’s AeroScope servers are operated out of the USA and our technicians can integrate DJI AeroScope with mobile solutions.
As well as being a drone defense specialist, HELIGUY.com™ has more than 10 years of experience in the drone industry and is a trusted consultant and supplier to major enterprise clients.
As a DJI AeroScope specialist, and located in the US and UK, HELIGUY.com™ can provide counter-UAS solutions and consultancy to organizations and companies in the U.S. and the UK, as well as around the world.
Drone DefenSe Case Studies
Learn more about our drone security system experience.
Heliguy Supplies Drone Detection To Gatwick Airport
HELIGUY.com™ provided Gatwick Airport with a sophisticated drone defense system, which now forms part of the airport’s overall counter UAS capability.
The UK’s second busiest airport took action after suspected drone sightings in December 2018, which grounded more than 1,000 flights and impacted 140,000 passengers.
Gatwick chose HELIGUY.com™ as its critical supplier and we installed the counter-drone technology, as part of a broader, comprehensive solution which protects the airport from a wide range of unmanned aircraft.
A layered drone defense solution for complete protection
Modern security requires a layered approach that keeps up with the evolution of drone technology.
To take drone detection to the next level and to have a comprehensive and all-encompassing strategy, a layered solution is an extremely effective course of action.
AeroScope is a sophisticated piece of kit and is the best in the business for detecting DJI drones and providing in-depth, real-time information about a potential UAS threat. However, AeroScope can only detect DJI drones.
This is nothing to be scoffed at though, as AeroScope works with all current models of DJI drones, which analysts estimate comprises over two-thirds of the global civilian drone market.
Because DJI dominates the drone arena, it is essential that AeroScope is at the heart of your drone defense strategy.
But, it is also important to plug the gaps - and this is where a multi-sensor solution comes in, integrating DJI AeroScope with other solutions.
This is why our layered approach - using a mix of counter-drone technology from a range of industry leaders, such as the AirGuard drone detection and tracking software from Texas-headquartered 911 Security, Advanced Protection Systems (aps), Operational Solutions Ltd (OSL), Rinicom, and Altitude Angel - is so effective.
Our multi-layered solution can include a second RF detector, radar/3D radar, and an optical camera with up to four Detection Modules each providing 90° coverage and a powerful 360° PTZ camera to zoom in to the detected object to analyze its signature. All of these systems can be brought together using a sophisticated interface.
In essence, Heliguy Detect’s layered solution is scalable and flexible depending on the client’s needs.
how to detect a drone in the sky
An overview on how different technologies will help defend your airspace against rogue drones.
Having a reliable counter-drone solution arms you with the knowledge that you will be protected from an illegally-flown UAS and you will be able to react quickly to any potential threat.
Here is a look at some of the anti-drone techniques which exist to fight back against an attack.
Drone Detection Methods
Heliguy Detect’s AeroScope solution, created by leading drone manufacturer DJI, is one tool for drone detection.
By intercepting the current communications link between a DJI drone and its remote controller, AeroScope is able to broadcast real-time identification information including UAS serial code, make and model, UAS position, speed, latitude and ground controller location.
This allows the operator to take mitigation action against the drone threat and at the same time dispatch law enforcement/security teams to apprehend the pilot.
Radar is another method of detecting and tracking drones.
Some advanced radar systems offer 360-degree coverage, fast-tracking and fully-automatic drone classification and flight-path monitoring.
Camera / Video
Cameras are another drone-detection technique, capturing the movement of a UAS, either using appearance-based, motion-based or hybrid methods.
The system has many commercial and defense applications, for example prisons, airports and places of interest, however, there are limitations.
Motion-based methods, for instance, can have difficulties distinguishing between drones and birds, while visual detection is dependent on the line of sight.
Acoustics fill a vital gap in proximity drone detection, as strict line-of-sight to target is not needed for positive tracking.
The drone can operate in urban canyons, cluttered areas, behind obstructions and in darkness or fog, out of range for radars and optics, but still within the earshot of an acoustic sensor.
Using hundreds of interconnected microphone elements, acoustic sensor units are able to establish a bearing and elevation to the target in real-time using advanced digital-signal processing.
Thermal imaging can be used to detect drones. Tests have shown that, by using a thermal camera, it is possible to detect and, with sufficient database, even identify foreign UAS.
The main heat source comes from the drone’s batteries. Some investigations have shown that the maximum range of detection is shorter than expected.
Drone Defense Methods
Jammers are designed to disrupt a drone by blasting electromagnetic noise at radio frequencies that drones operate and transmit video at, and at a power level high enough to drown out any effective communication between the drone and its pilot.
This is known as RF-jamming and this method does not interfere with manned aircraft, cell phones, public broadcasts, or other dedicated radio bands.
When a drone is hit with a jammer’s signal, the drone usually returns back to its origin point (unless GPS is also jammed), giving the jammer user the option to track the drone back to the pilot.
Sometimes the drones might even perform a vertical descent and land on the spot intact. Landing on the spot is also the general response from drones when both RF and GPS are jammed at the same time.
Jammers can be effective against drones over several kilometres away.
While jammers are generally restricted for use in many countries except by the military, police, and first responders depending on the laws, non-GPS jammers are legal in a number of countries.
It is important to look into the laws and regulations of the country and state that you are in to determine whether the use of a drone jammer is legal before operating one.
Perhaps one of the most obvious ways to stop a drone threat is to shoot them down. This isn't always a popular option, though.
But such net-capture guns are more useful if used in conjunction with other detection technologies.
Lasers are another way of fighting back against a drone attack. Both the US and China have experimented with technology that can shoot down a device within seconds of locating it.
One method comprises a high-energy beam that locates and disables small drones from several miles away. This technology apparently uses infrared cameras that can work in low-visibility conditions, such as fog.
During 2018, China demonstrated a laser gun called the Silent Hunter, which can intercept drones with 'high accuracy'.
A more natural solution has been developed in The Netherlands - with police using trained eagles to bring down hostile drones.
The birds do this by latching on to the propellers with their talons, instantly disabling them.
Trainers say that the eagles see UAS as prey, so are not interested in attacking anything else when released. However, there have been issues, with reports that the eagles wouldn’t always do what they were trained to do.
